KOHLHAUER SCORSA®

    HIGHEST FUNCTIONALITY FOR SUSTAINABLE NOISE PROTECTION

    KOHLHAUER SCORSA® is a well thought-out and individually designable transparent product group. Because of the modular principle, different project dimensions can be handled efficiently. First, the appropriate element filling is selected according to the modular principle; KOHLHAUER obtains these from different suppliers worldwide. Then, by selecting the appropriate frame solution, the individual, transparent noise protection element is created.

      Applications

      The choice of infill and frame solution is always based on customer-specific requirements, so not all element infills or frame solutions are always equally suitable for a project. For example, SCORSA FRAME is the inconspicuous, transparent standard solution, SCORSA CLEARWALL is transparent and absorbent at the same time, SCORSA FLEX is the basis for futuristic design, SCORSA POINT FIX is a fastening concept that eliminates visibility restrictions caused by frames, and the wind protection product KOHLHAUER SCORSA® BORA is optimally suited for use on bridges.

      Applications

      The choice of infill and frame solution is always based on customer-specific requirements, so not all element infills or frame solutions are always equally suitable for a project. For example, SCORSA FRAME is the inconspicuous, transparent standard solution, SCORSA CLEARWALL is transparent and absorbent at the same time, SCORSA FLEX is the basis for futuristic design, SCORSA POINT FIX is a fastening concept that eliminates visibility restrictions caused by frames, and the wind protection product KOHLHAUER SCORSA® BORA is optimally suited for use on bridges.

      Advantages KOHLHAUER SCORSA®

      • Stable profile frames made of coated aluminum
      • Available with different pane materials
      • Optional bird protection strips
      • Extensive color options for an individual design
      • CE certifications available

      Materials for noise protection with vision

      • KOHLHAUER SCORSA® made of XT

        KOHLHAUER SCORSA® can be filled with XT, a highly transparent, extruded acrylic. The material has excellent optical properties and has already proven itself many times. It offers an economical solution.

      • KOHLHAUER SCORSA® made of GS

        Another option is to fill KOHLHAUER SCORSA® with GS material, a cast acrylic. It has an excellent surface quality with high grade and optical quality. It is characterized by a wide processing range.

      • KOHLHAUER SCORSA® made of ESG/VSG

        KOHLHAUER SCORSA® can also be designed with a silicate glass filling as a single-pane (ESG) or with a laminated safety glass (VSG) solution. The material shows excellent transparency and economy. It has high impact and shock resistance and is insensitive to high temperature fluctuations.

      • KOHLHAUER SCORSA® made of XT-BG

        KOHLHAUER SCORSA® can also be filled with XT Bird Guard, another highly transparent extruded material. This material additionally has incorporated strips that help prevent birds from hitting it and therefore serve to protect nature.

      • KOHLHAUER SCORSA® made from GS-CC

        The filling of KOHLHAUER SCORSA® with GS CC, a highly transparent cast acrylic with embedded polyamide threads, provides additional binding of splinters to prevent falling fragments and also acts as bird protection.

      • KOHLHAUER SCORSA® made from LNP

        As an alternative, KOHLHAUER SCORSA® can also be filled with a special laminated safety glass of the LNP brand. This consists of fully thermally toughened silicate glass (ESG). This results in a laminated safety glass with defined properties. LNP also meets the requirements for fall protection of fragments.

      KOHLHAUER SCORSA® FRAME

      KOHLHAUER SCORSA®
      FRAME

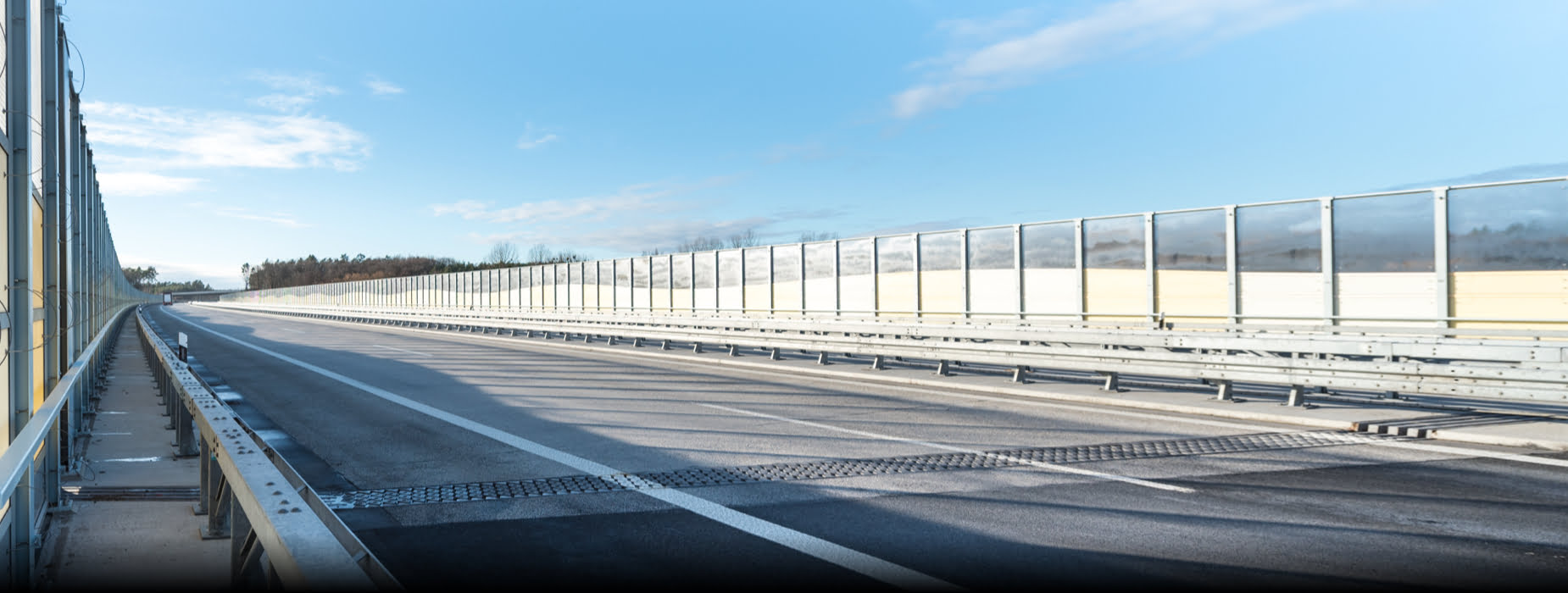

      KOHLHAUER SCORSA® FRAME stands worldwide for innovative, durable and economical noise protection that is characterized by its inconspicuous design. The sophisticated element construction and clever system components make the noise barriers particularly easy to install and always a budget-friendly, transparent solution.

      MORE

      KOHLHAUER SCORSA® FLEX

      KOHLHAUER SCORSA®
      FLEX

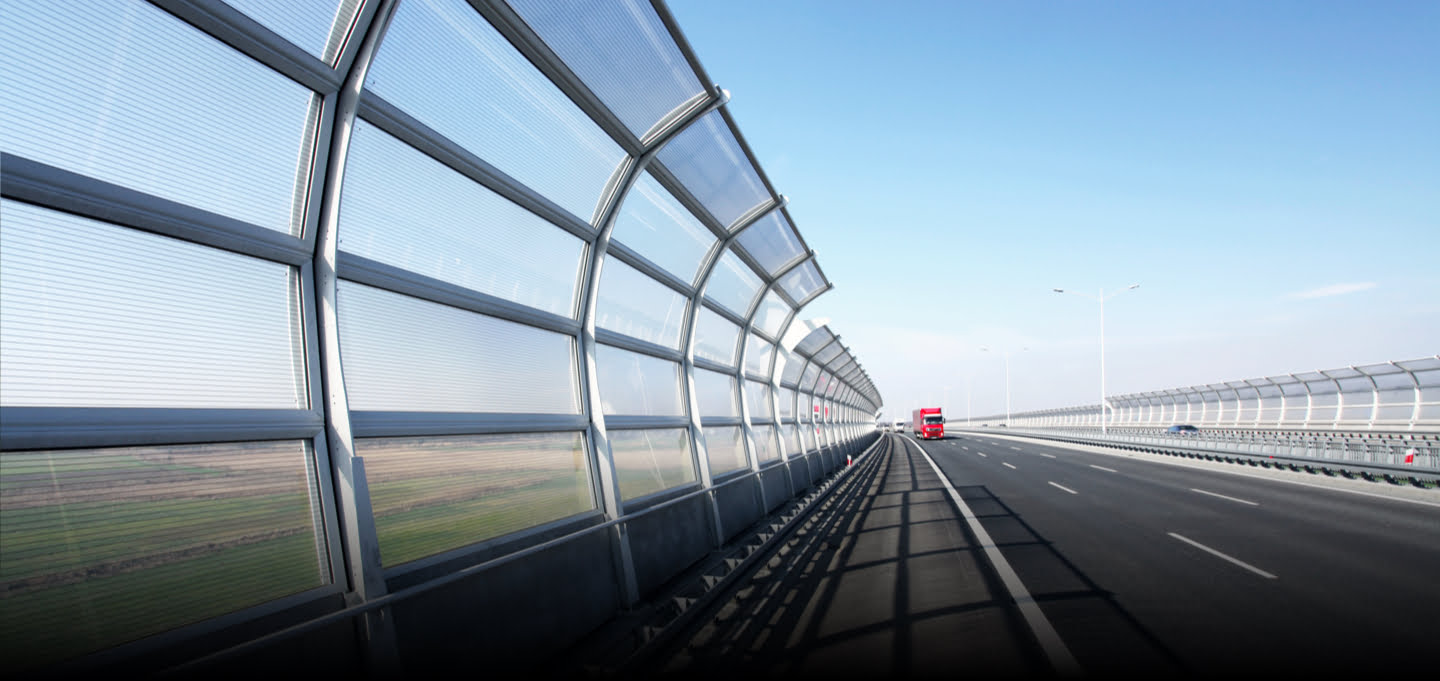

      With the SCORSA® FLEX system, transparent frame systems can now also be used on curved noise barriers. They allow better noise attenuation with simultaneous wall height reduction. The KOHLHAUER SCORSA® FLEX system offers the solution: from the support to the flexible hinged frame to the fastening by means of a special clamping construction. The uncomplicated and quick installation also ensures excellent economic efficiency.

      MORE

      KOHLHAUER CLEARWALL®

      KOHLHAUER CLEARWALL®

      CLEARWALL® is a modular frame system that combines transparent noise protection with integrated absorbing elements. Depending on the design, absorption values of 4-8 dB can be achieved. It is therefore no longer necessary to waive transparent materials when sound absorption is required. In this way the unobstructed view of the landscape is maintained and the perception of the noise barrier as an optical barrier is reduced.

      KOHLHAUER offers two systems for this purpose: CLEARWALL® VS and CLEARWALL® HS.

      MORE

      KOHLHAUER SCORSA® POINT FIX

      KOHLHAUER SCORSA®
      POINT FIX

      KOHLHAUER SCORSA® POINT FIX offers a well thought-out and durable quality solution here. With it, the potential of transparency in noise protection can be exploited even more effectively. The fixation of transparent noise protection elements via anchor points is an innovative top solution from KOHLHAUER. The patented and proven effective technology connects elastically transparent elements via spring elements to a slim support structure. The decisive advantage lies in the combination of maximum structural stability and almost complete freedom of view. Solid posts or frames that stabilize transparent noise barriers in the conventional way impair the free view of the environment to a greater or lesser extent.

      MORE

      KOHLHAUER SCORSA® BORA

      KOHLHAUER SCORSA®
      BORA

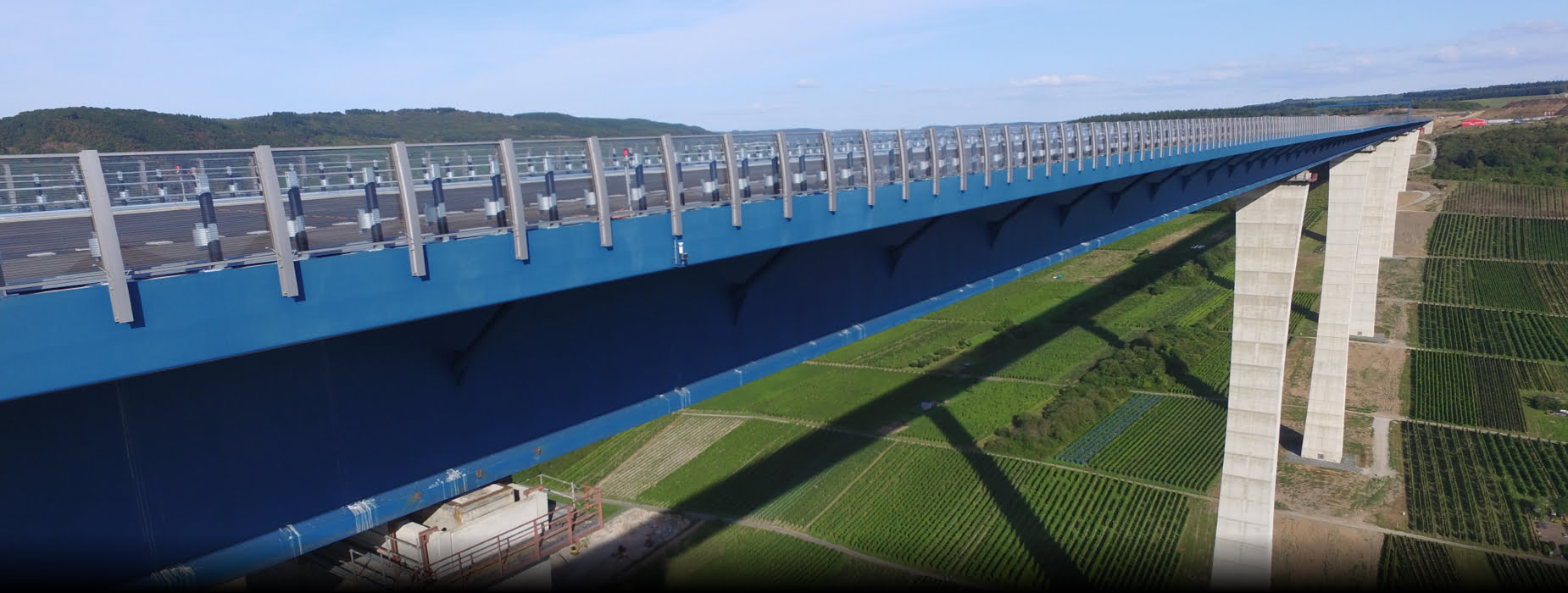

      Wind loads are among the climatically variable effects on structures. They result from the pressure distribution around a building that is exposed to strong wind currents. This includes numerous bridges in sometimes very exposed locations, e.g. over valleys. Storms, wind gusts or crosswinds pose a great danger to road users if they are strong enough. KOHLHAUER SCORSA® BORA offers a transparent solution here.
